XFPT Thermopile Laser Power Detector
Embedded thermopile detector modules with 6 mm and 10 mm apertures, 0.1 W and 1 W ranges, and raw, analog or serial output.

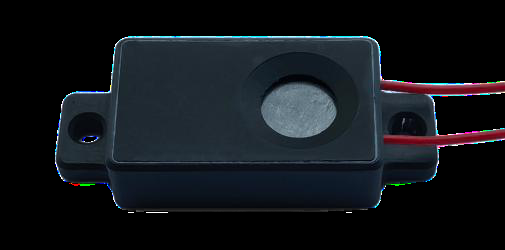

A thermopile detector on a small board, made to be built into equipment rather than held in the hand — reporting through raw voltage, analog output or a serial port.
Why this series
- 6 mm and 10 mm detection apertures, 0.1 W and 1 W ranges
- Full-spectrum measurement covering 0.19–22 µm
- Works with CW and pulsed lasers, including nanosecond and picosecond sources
- High damage threshold of 10 kW/cm² average power density
- Interface options: raw signal, analog output, RS232, RS485 or TTL
- Analog output selectable at 1 V, 2.5 V or 10 V full scale
- Very light: 6 g (6 mm version) and 8 g (10 mm version)
- Response time under 2.5 s, linearity better than 1%
Models

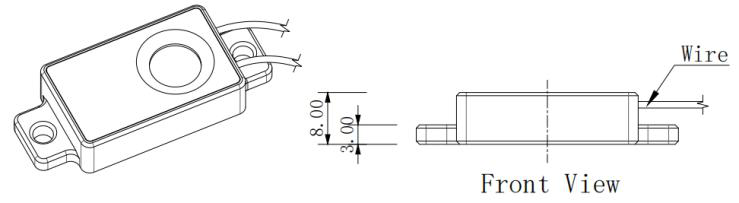

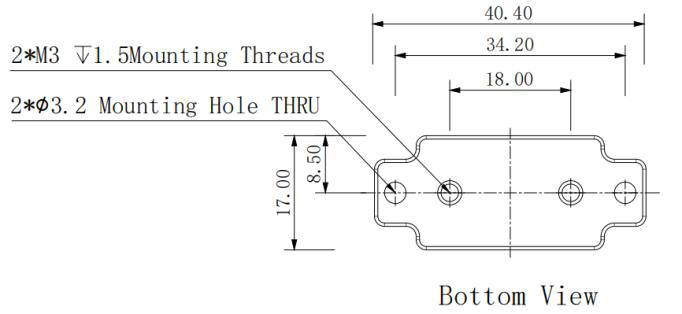

| Model | Power range | Aperture | Responsivity | Dimensions |
|---|---|---|---|---|
| XFPT-6-0.1W | 0.1 W | 6 mm | ~0.1 V/W | 20 × 13 × 8 mm |
| XFPT-6-1W | 1 W | 6 mm | ~0.1 V/W | 20 × 13 × 8 mm |

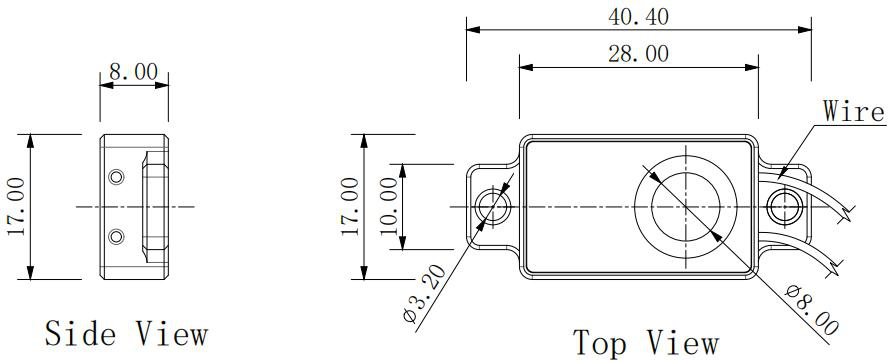

| XFPT-10-0.1W | 0.1 W | 10 mm | ~0.2 V/W | 28 × 17 × 8 mm |
| XFPT-10-1W | 1 W | 10 mm | ~0.2 V/W | 28 × 17 × 8 mm |
Where it is used
- Power monitoring for CW and pulsed lasers
- Built-in detection inside ns and ps laser modules
- Closed-loop power feedback for fiber and UV lasers
- Embedded sensing in laser equipment and micro laser modules
- Laser source aging and output monitoring
Designing it into a product?
Send the power, wavelength, available space and the signal your board expects. We will confirm the aperture, range and interface. Send an inquiry →
