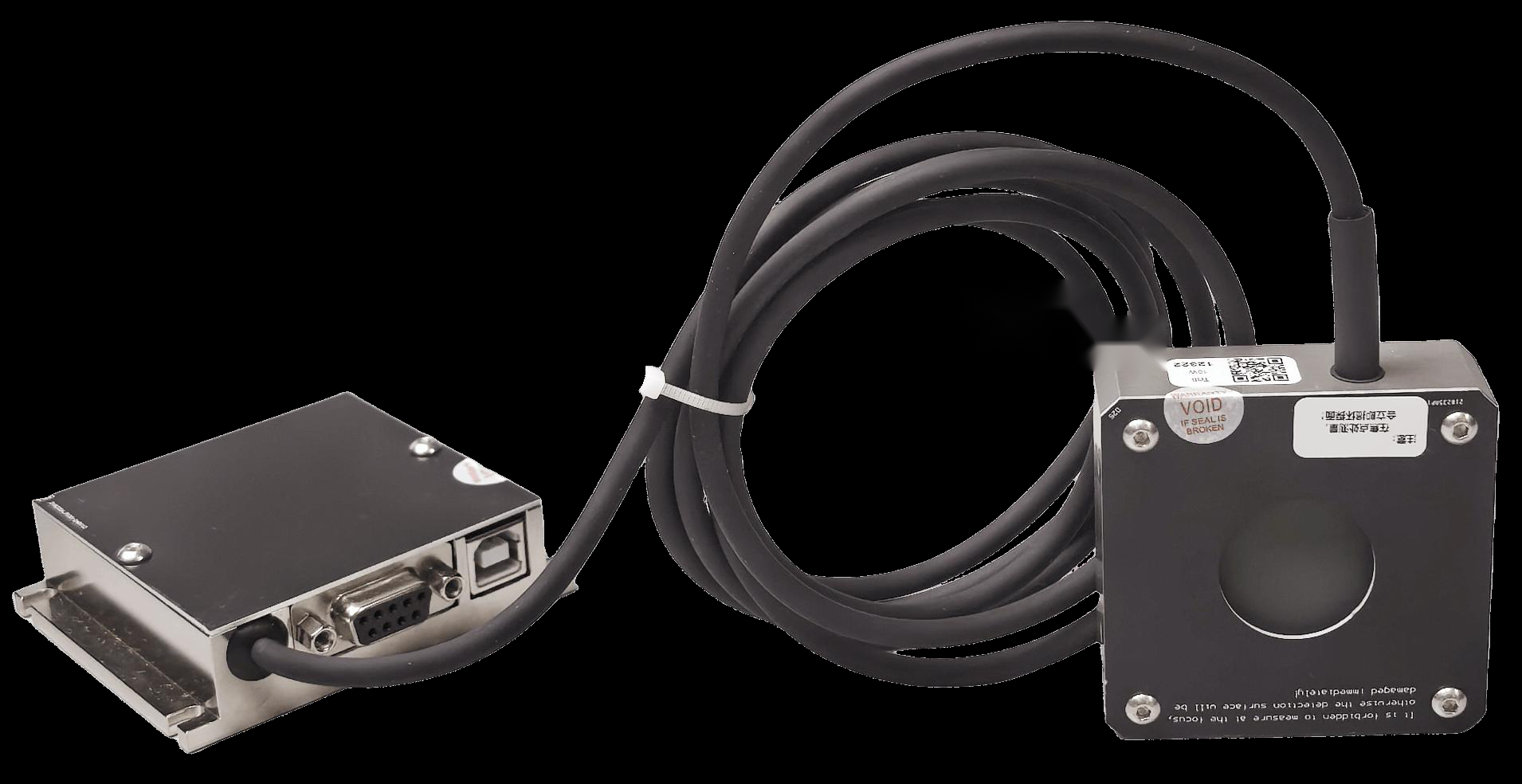

Trill Laser Energy Meter
Online energy meter for single-pulse measurement from 10 mJ to 30 J, with USB and RS232 output.
An online energy meter for single-pulse measurement — for lasers where the energy per pulse matters more than the average power, from 10 mJ up to 30 J.
Why this series
- Single-pulse energy measurement from 10 mJ to 30 J depending on model
- USB and RS232 output, ASCII protocol — pulse-to-pulse values into your own software
- 25 mm aperture, spectral range 0.19–11 µm
- Energy resolution from 1 mJ
- Response time under 1.5 s; conduction-cooled, no water supply needed

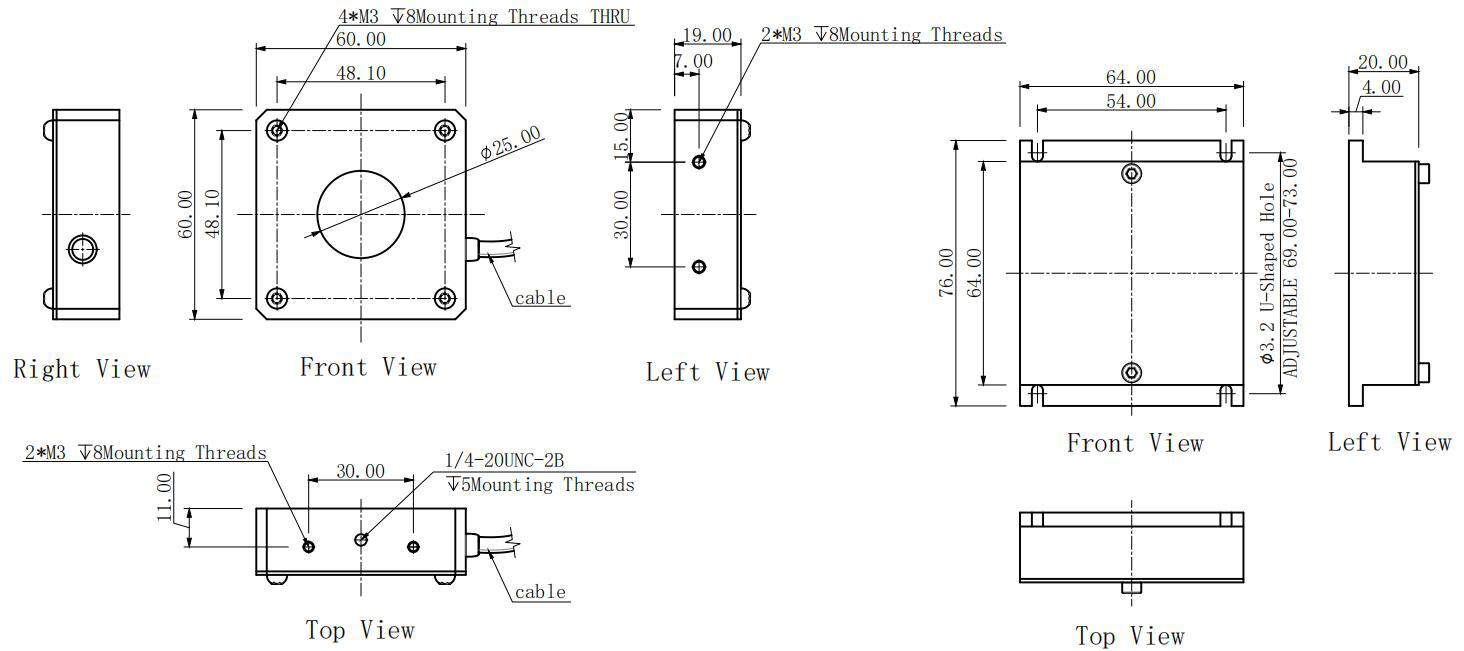

- Drag-chain rated cable and compact head (from 60 × 60 × 20 mm)
Models
| Model | Energy range | Power range | Aperture | Interface |
|---|---|---|---|---|
| Trill-PE10-HP-25 | 10 – 600 mJ | 10 mW – 50 W | 25 mm | USB & RS232 |
| Trill-PE50-HP-25 | 20 mJ – 3 J | 10 mW – 100 W | 25 mm | USB & RS232 |
| Trill-PE200-HP-25 | 30 mJ – 30 J | 10 mW – 250 W | 25 mm | USB & RS232 |
Where it is used
- Pulse-energy monitoring on pulsed laser equipment
- Verification of pulse-to-pulse stability
- Service and calibration checks on installed systems
Measuring pulses rather than average power?
Tell us the pulse energy, repetition rate, wavelength and pulse width. We will confirm whether Trill is the right series or point you to a power meter instead. Send an inquiry →
