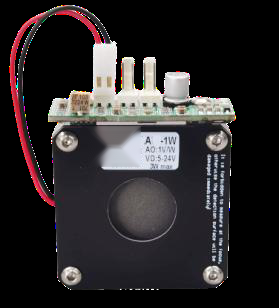

Lynk-A Analog Laser Power Meter
Analog-output power meters from 1 W to 50 W for integration inside the laser head, with 5–24 V supply.
Analog-output power meters small enough to sit inside the laser head — a raw voltage proportional to optical power, available to your own control loop.
Why this series
- Analog output selectable as 0–1.0 V, 0–2.5 V or 0–5 V
- Single 5–24 V supply — no separate signal conditioning

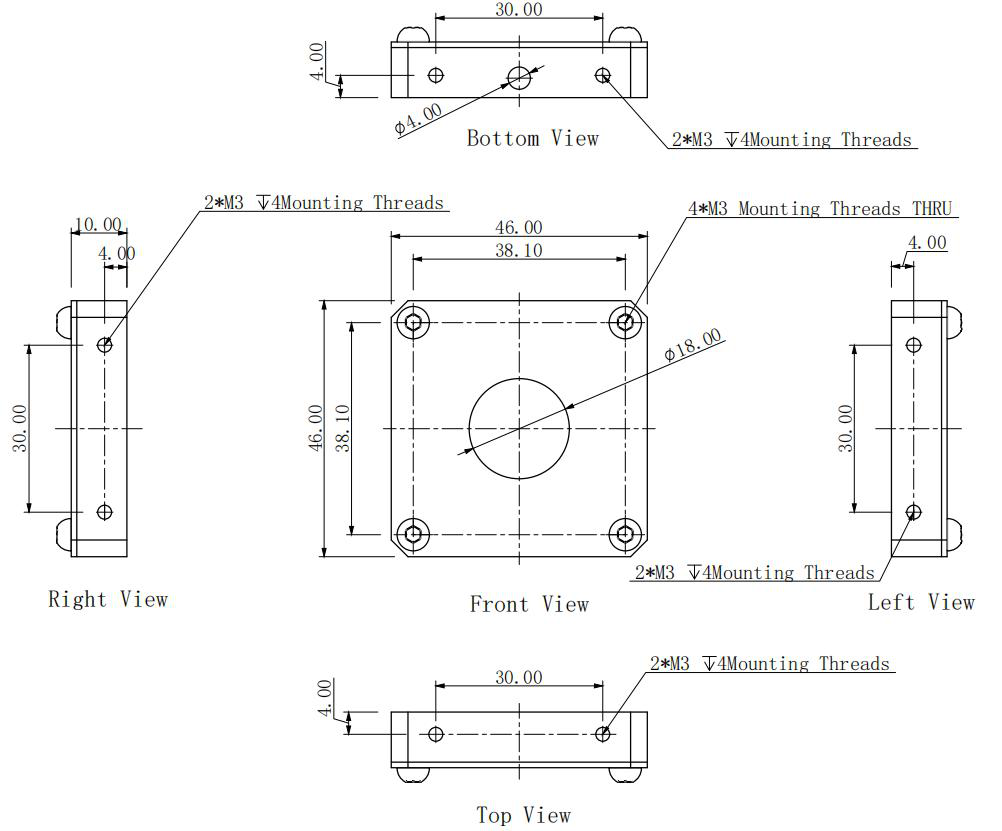

- Ultra-compact footprint: from 46 × 46 × 10 mm, 45 g
- Power ranges 1 W, 5 W, 10 W and 50 W
- Conduction cooling, spectral range 0.19–11 µm
- Response time under 1.5 s with linearity better than 1%
- Designed for internal integration where a display or serial port will not fit
Models
| Model | Power range | Aperture | Dimensions | Weight |
|---|---|---|---|---|
| LynkA-1CS18-M1 | 2 mW – 1.0 W | 18 mm | 46 × 46 × 10 mm | 45 g |
| LynkA-5CS18-M1 | 3 mW – 5.0 W | 18 mm | 46 × 46 × 10 mm | 45 g |
| LynkA-10CS18-M1 | 5 mW – 10 W | 18 mm | 60 × 60 × 20 mm | 150 g |
| LynkA-50C25-M1 | 10 mW – 50 W | 25 mm | 60 × 60 × 20 mm | 150 g |
Where it is used
- Built-in power feedback inside the laser head
- Closed-loop control and power regulation
- Equipment where the sensor must disappear into the mechanics
Need the output to match your control board?
Tell us the voltage window your electronics expects and the space available. We will confirm the model and the output scaling. Send an inquiry →
