Caliber Compact Laser Power Meter
All-in-one meter for marking and engraving machines — 10 W, 50 W and 150 W versions with Type-C charging.
An all-in-one meter built for marking and engraving machines — small enough to keep in a tool bag, quick enough to check a machine between jobs.
Why this series
- Three power levels: 10 W, 50 W and 150 W
- 22 mm aperture with standard (full-spectral) and homogenized versions
- Compatible with CW and pulsed lasers, including nanosecond and picosecond sources
- High damage threshold, response time under 1.5 s, resolution 0.01 W
- Rechargeable 1200 mAh battery with more than 12 hours of use
- Type-C charging — the same cable as the phone in your pocket

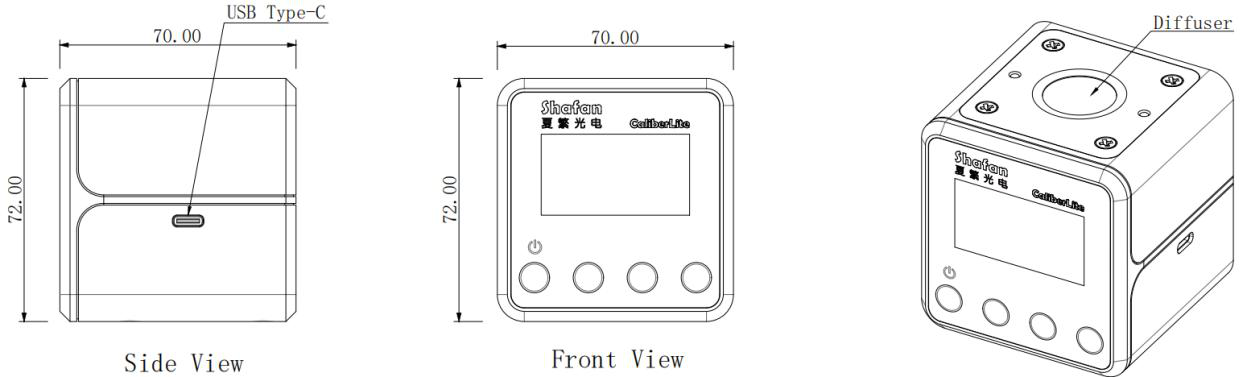

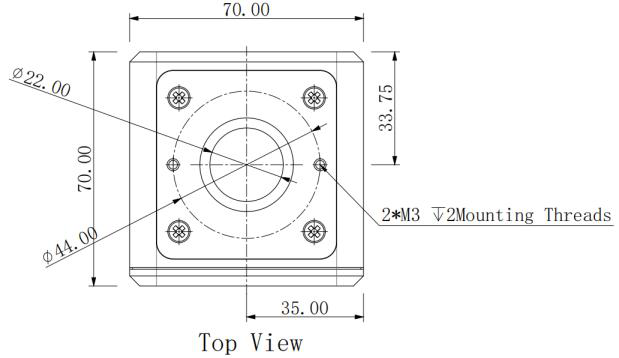

- Compact 70 × 70 × 72 mm body, 0.75 kg
Models
| Model | Max power | Wavelength | Aperture | Interface |
|---|---|---|---|---|
| Caliber-10 | 10 W | 0.19–22 µm | 22 mm | Type-C |
| Caliber-50 | 50 W | 0.19–22 µm | 22 mm | Type-C |
| Caliber-150 | 150 W | 0.19–22 µm | 22 mm | Type-C |
| Caliber-10D | 10 W | 0.28–1.4 µm | 22 mm | Type-C |
| Caliber-50D | 50 W | 0.28–1.4 µm | 22 mm | Type-C |
| Caliber-150D | 150 W | 0.28–1.4 µm | 22 mm | Type-C |
Intermittent measurement ratings: 10 W continuous, 50 W for 2 minutes, 150 W for 1 minute.
Where it is used
- On-site inspection of laser marking machines
- Quality checks in marking-machine production
- Verification of process parameters after service work
- Portable test tool for distributors and service engineers
- Routine power monitoring in laser processing workshops
