PowerMag Magnetic Laser Power Detector
All-in-one 3 W detector with a magnetic back plate — placed, measured and moved on in seconds.
A detector with a magnetic back plate — placed on the machine, measured, lifted off and moved to the next station in seconds. Made for tight spaces and quick checks.
Why this series
- All-in-one structure with a magnetic back plate — no bracket, no drilling
- 3 W continuous, with intermittent ratings up to 10 W for 2 minutes
- 10 mm aperture, spectral range 0.19–11 µm
- Analog output at 0.2 V/W
- Response time under 2.5 s; linearity better than 1%
- 0.2 kg, Ø53 × 31 mm, with a 0.3 m cable
- Repositioned in seconds — useful for on-the-spot output checks
Specifications
| Model | PowerMag-3W |
|---|---|
| Power range | 3 W continuous (10 W for 2 minutes intermittent) |
| Aperture | 10 mm |
| Spectral range | 0.19–11 µm |
| Responsivity | 0.2 V/W |
| Maximum CW power density | 10 kW/cm² |
| Response time | < 2.5 s |
| Uncertainty | < 1% (linearity), < 3% (accuracy) |
| Cooling | Convection |
| Interface | Analog |

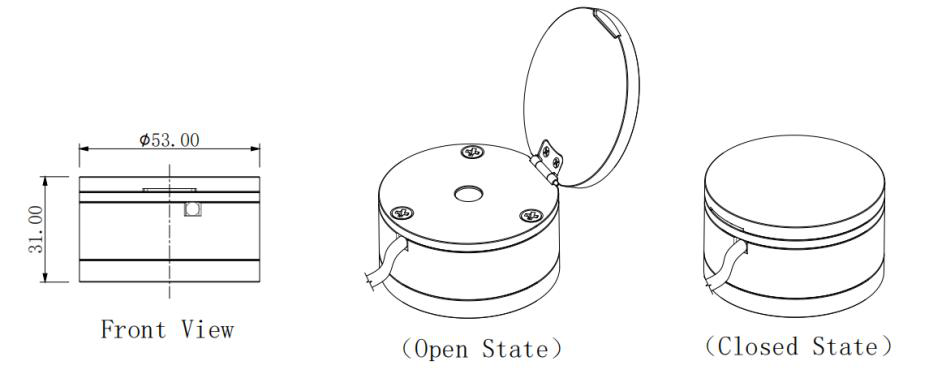

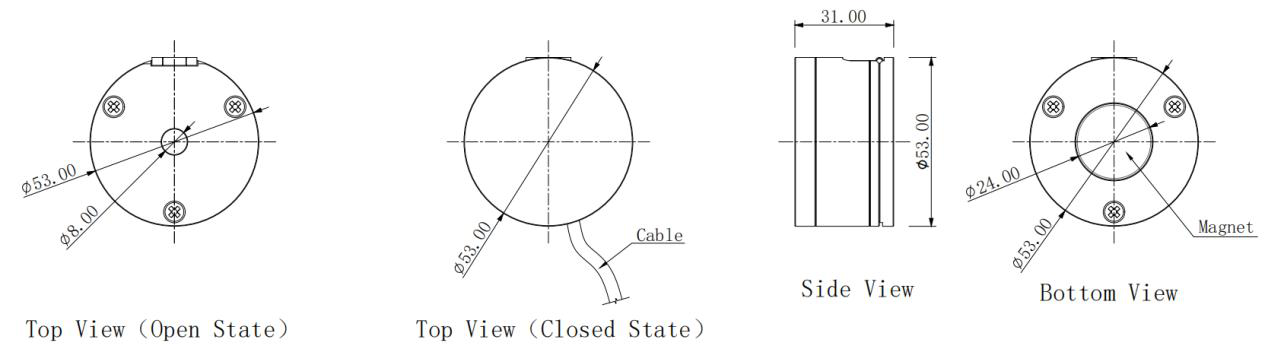

| Dimensions / weight | Ø53 × 31 mm / 0.2 kg |
Where it is used
- Power inspection on 3D-printing lasers
- Process calibration for laser engraving and desktop marking machines
- Power measurement in laboratory optical research
- R&D and prototype testing of laser equipment
- Portable measurement in confined spaces
Checking machines in the field?
PowerMag is often bought as a field kit for service teams and 3D-printing integrators. Tell us the laser type and how many units you need. Send an inquiry →
