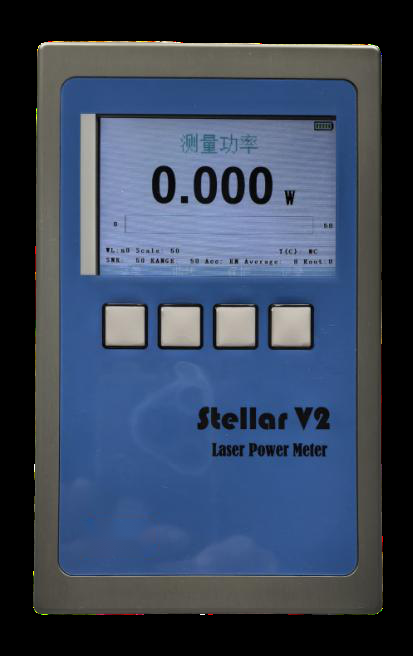

Stellar V2 Handheld Laser Power Meter
Handheld power and energy meter with interchangeable thermopile heads from 2 mW to 3000 W — 3.5-inch color display, 3600 mAh battery.
A handheld meter with a 3.5-inch color display and a family of interchangeable thermopile heads — built for incoming inspection, pre-dispatch checks, after-sales work and laboratory benches.
Why this series
- Head range covers 2 mW to 3000 W, with apertures of 18, 19, 25 and 50 mm
- Self-stabilising zero circuit — no zero adjustment before every reading
- Adjustable second-order acceleration algorithm for faster settling
- Optional single-pulse energy measurement (E-type heads)
- 3600 mAh battery: 12-hour charge, 24-hour working time
- Stores up to 1667 hours or 10,000 data points; waveform display on screen
- Metal body with shielding for use next to drives and power stages
- Burn-in protection for the probe when power exceeds the range
- Factory calibration with NIST traceability, plus a user self-calibration routine
- USB-B output with PC monitoring software
Meter specifications
| Display | 3.5-inch true color LCD, 480 × 320, multi-level backlight |
|---|---|
| Battery | 3600 mAh — 12 h charging, 24 h discharging |
| Power supply | USB-B, 5 V 1 A adapter |
| Communication | USB-B with PC monitoring software |
| Electrical accuracy | < 1% |
| Analog output | 0–1 V (10-bit) |
| Alarm output | Open-collector gate, max. 0.35 A, polarity configurable |
| Storage | Up to 1667 hours / 10,000 data points |
| Display modes | Numeric, bar chart, waveform graph |

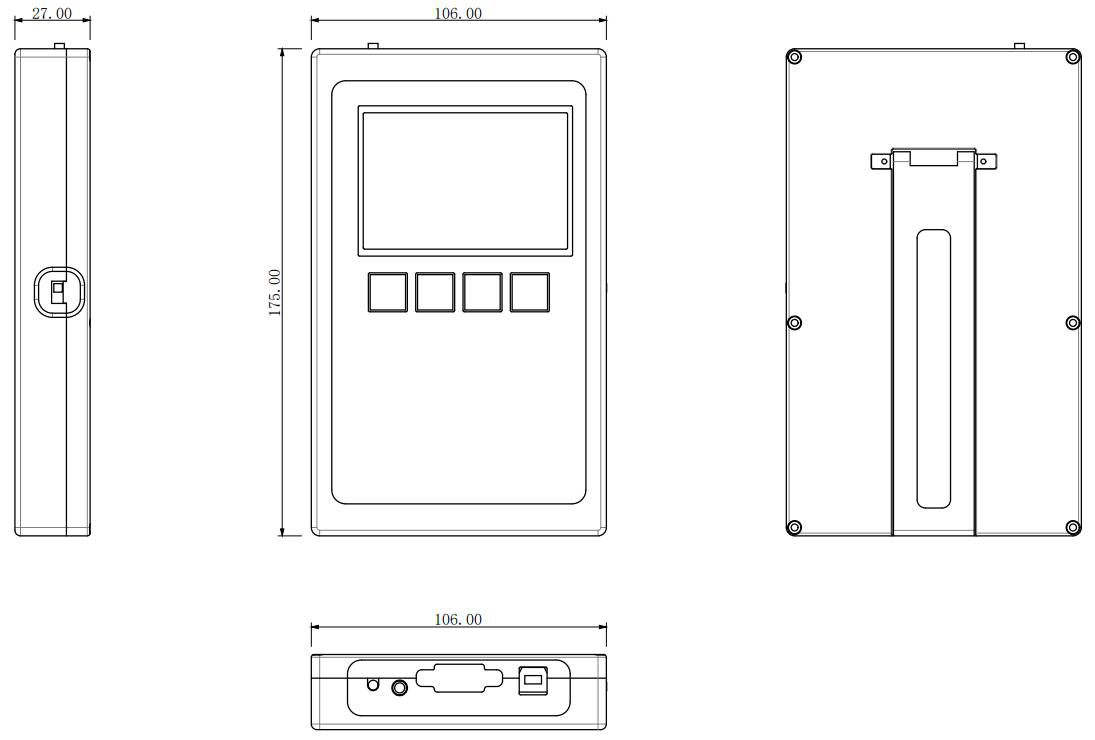

| Dimensions | 175 × 106 × 27 mm |
| Weight | 0.5 kg |
Heads for this meter
Representative models; the full range covers 2 mW to 3000 W. Suffix D marks homogenized (diffuser) versions for higher power density; W marks water-cooled heads.
| Model | Power range | Aperture | Wavelength | Cooling |
|---|---|---|---|---|
| Stellar-2C18-M1 | 2 mW – 2 W | 18 mm | 0.19–11 µm | Conduction |
| Stellar-10C25-M1 | 3 mW – 10 W | 25 mm | 0.19–11 µm | Conduction |
| Stellar-50F19-M1 | 10 mW – 50 W | 19 mm | 0.19–11 µm | Forced air |
| Stellar-100F19-M1 | 20 mW – 100 W | 19 mm | 0.19–11 µm | Forced air |
| Stellar-200F25-M1 | 20 mW – 200 W | 25 mm | 0.19–11 µm | Forced air |
| Stellar-300F50-M1 | 50 mW – 350 W | 50 mm | 0.19–11 µm | Forced air |
| Stellar-1000F25-M1 | 1 W – 1000 W | 25 mm | 0.19–11 µm | Forced air |
| Stellar-1000W25-M1 | 1 W – 1000 W | 25 mm | 0.19–11 µm | Water |
| Stellar-2000W50-M1 | 2 W – 2000 W | 50 mm | 0.19–11 µm | Water |
| Stellar-3000W50-M1 | 3 W – 3000 W | 50 mm | 0.19–11 µm | Water |
Typical use
- Handheld measurement on installed laser equipment
- Spot checks on new machines before dispatch
- After-sales maintenance of optical equipment
- Laboratory testing of light-source performance
Send the beam, get the head
Tell us the average power, wavelength, beam diameter and whether the laser is CW or pulsed — we will come back with the head that fits, including the right aperture and cooling. Send an inquiry →
