Lynk Online Laser Power Meter
Online power meters for equipment integration — RS232, RS485 or USB output, 2 mW to 3000 W, air-cooled and water-cooled heads.

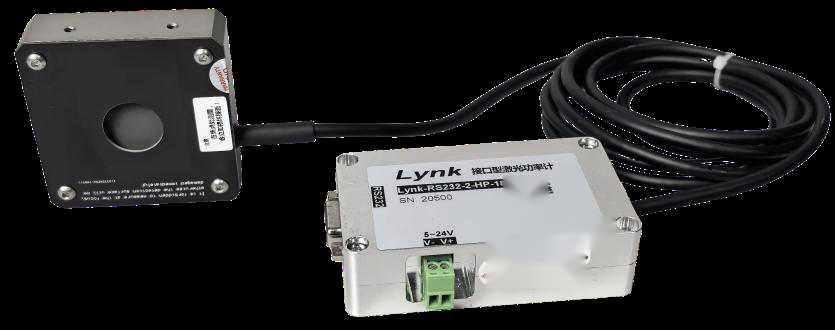

Online power meters that live inside the machine — no display, no battery, powered by the host. The reading goes straight to your controller over RS232, RS485 or USB, so power becomes a number your system can act on.
Why this series
- Interface choice per model: -T RS232, -D RS485, -U USB
- Simple ASCII protocol and Modbus RTU — straightforward to program from a PLC or PC
- Power range from 2 mW to 3000 W, apertures 18–50 mm
- Air-cooled and water-cooled heads for continuous high-power operation
- Self-stabilising zero circuit, so long-running monitoring does not drift with zero adjustment
- Metal housing with shielding; drag-chain rated cable for moving axes
- Factory calibration with NIST traceability and a user self-calibration routine
- Mounting threads for optical accessories on the larger heads
Representative models
Standard air-cooled heads below; the same ranges are available in water-cooled form (marked W) and with RS485 or USB interfaces instead of RS232.
| Model | Power range | Aperture | Cooling | Interface |
|---|---|---|---|---|
| Lynk-2C18-M1-T | 2 mW – 2 W | 18 mm | Conduction | RS232 |
| Lynk-10C18-M1-T | 5 mW – 10 W | 18 mm | Conduction | RS232 |

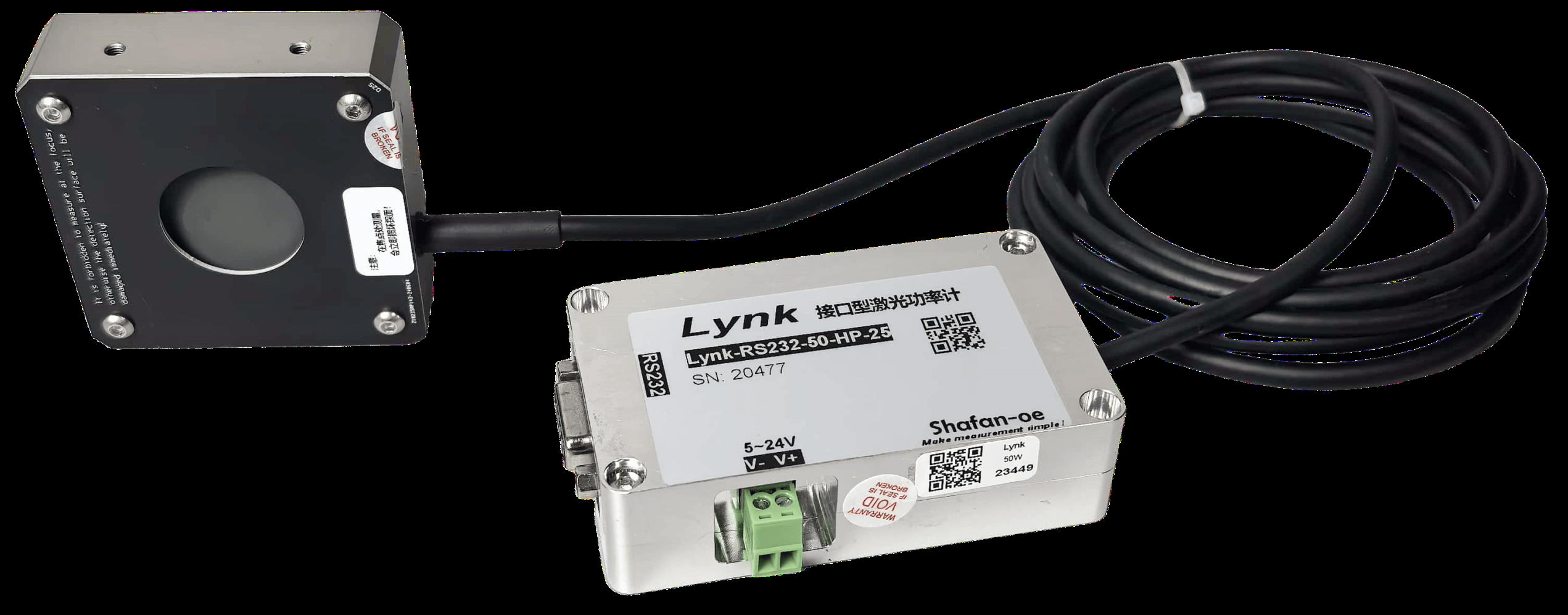

| Lynk-50C25-M1-T | 20 mW – 50 W | 25 mm | Conduction | RS232 |
| Lynk-50F19-M1-T | 10 mW – 50 W | 19 mm | Forced air | RS232 |
| Lynk-150F19-M1-T | 30 mW – 150 W | 19 mm | Forced air | RS232 |

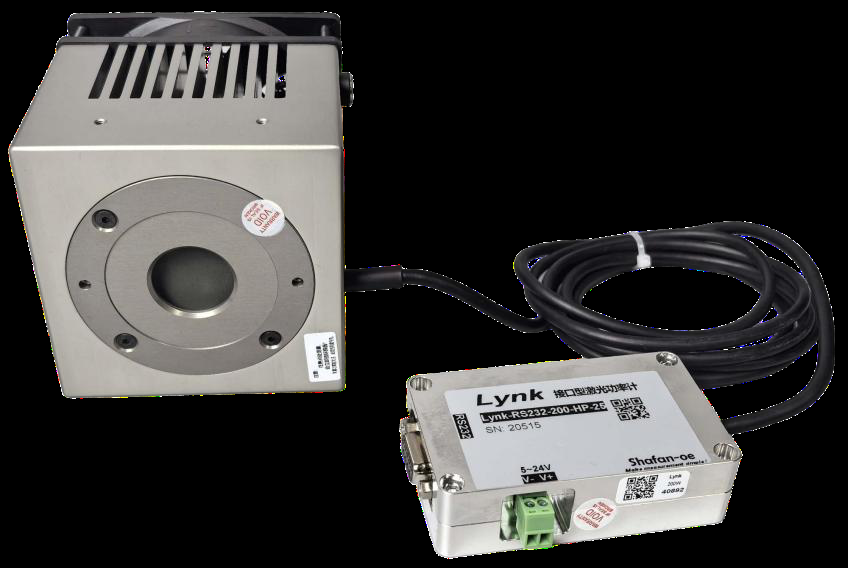

| Lynk-300F25-M1-T | 100 mW – 300 W | 25 mm | Forced air | RS232 |
| Lynk-1000F25-M1-T | 1 W – 1000 W | 25 mm | Forced air | RS232 |

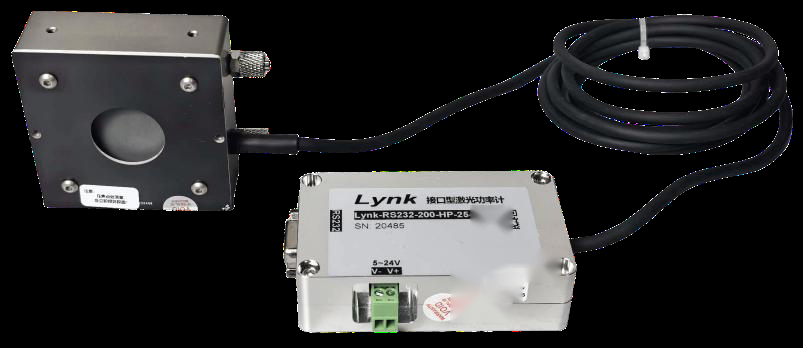

| Lynk-200W25-M1-T | 100 mW – 200 W | 25 mm | Water | RS232 |
| Lynk-1000W25-M1-T | 1 W – 1000 W | 25 mm | Water | RS232 |
| Lynk-3000W50-M1-T | 3 W – 3000 W | 50 mm | Water | RS232 |
Where it is used
- Online power monitoring on welding and cutting equipment
- 3C laser equipment and intelligent manufacturing lines
- Photovoltaic and new-energy production equipment
- Medical laser equipment
- Optoelectronic research and manufacturing
Integrating into an existing machine?
Send the beam parameters and the interface your controller speaks (RS232, RS485, USB, or a protocol description). We will confirm the model, cable and mounting. Send an inquiry →
